Application:

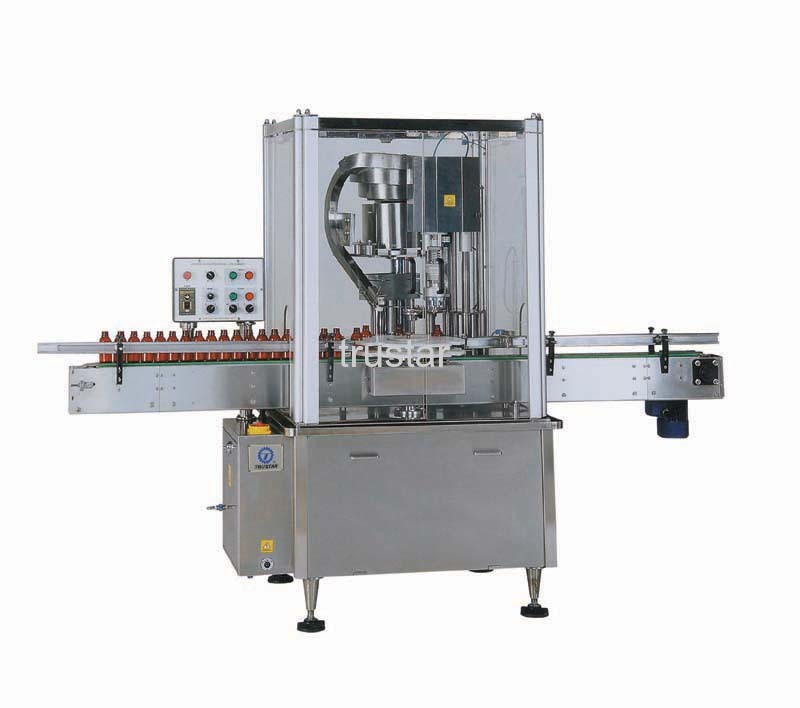

Intermittent star-tray positioning, machine will stop automatically If there is no bottle or not correct bottle orientation. Caps falling by vibrating from the round disk. Pick up the caps by Robot, bottle orientation is correctly the caps are held by cylinder (The holding force can be regulated), there's no Damage during capping. The wresting force can be adjusted enable to lock Different caps. There's cushion device on the head of the.Locking cap, it further reduce the shattering rate. The machine has several self-inspection points, it will Stop automatically it there is no bottle to lock, exit blocking Out, bottle orientation not correct, bottle dumpage. Different bottles and caps just change the locking head parts and the star Tray accordingly, the replacing operation is easy.

Main Technical Specifications

Model TSC50

Capping Type crew capping

Capacity 40-50 Bottles /min

Power Supply 1.2 Kw 380V 50Hz (Optional)

Air Consumption 4Kg   30L/ min

Machine Weight 700kg
